The UP1000 dental lab scanner is equipped with dual 5MP high-definition cameras for data acquisition, offering scanning precision of up to 5 μm. It supports both dynamic and static articulator scans, utilizing innovative technology to enhance occlusal accuracy. Providing high-quality solutions for dental restorations, the UP1000 is suitable for a wide range of complex cases, including denture scanning, fixed restorations, implant scan bodies, implant crowns, and bridges.

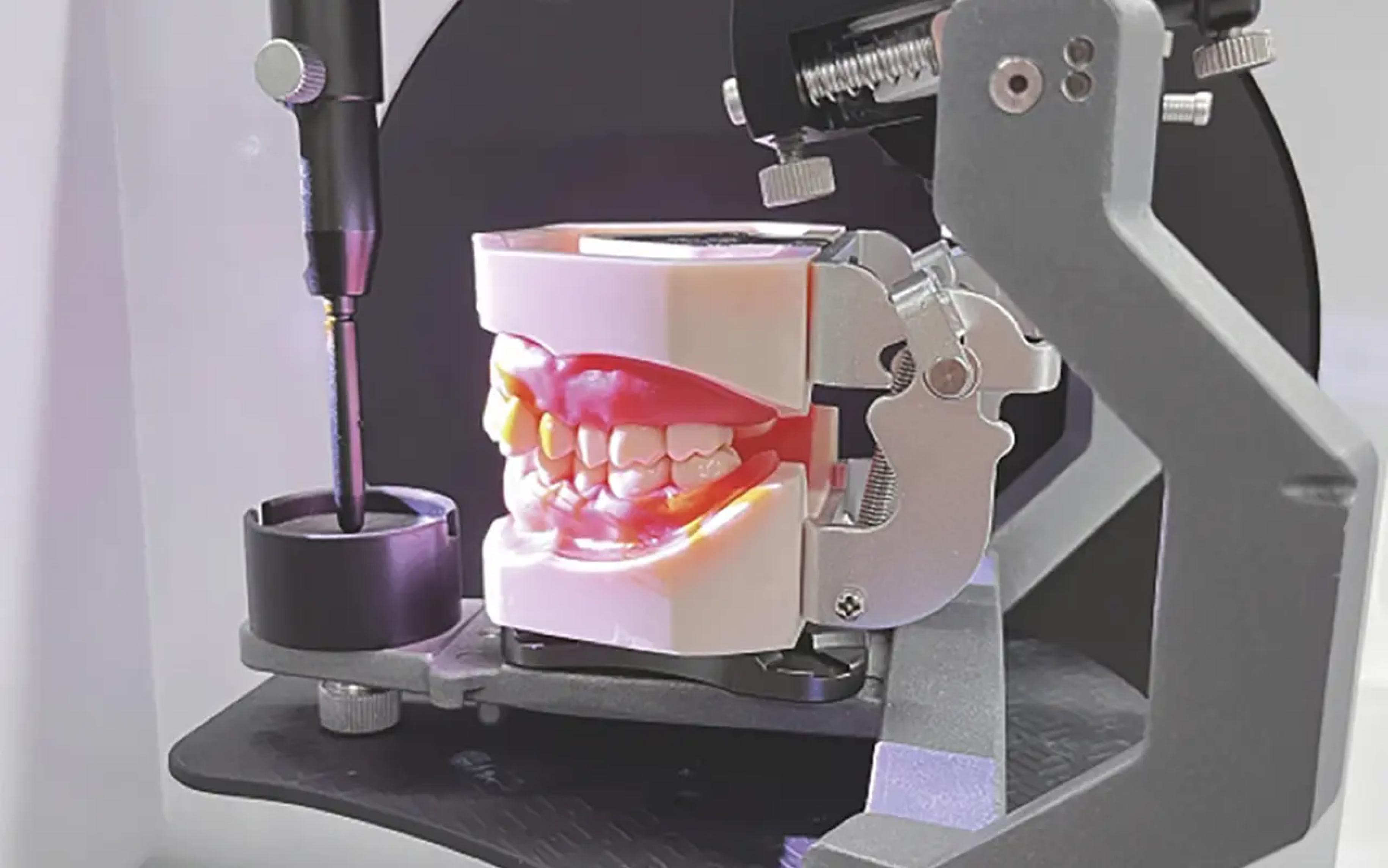

The dynamic and static articulator modes of the UP1000 digital impression leverage innovative technology to comprehensively capture the full jaw, ensuring accurate occlusal matching for higher-quality dental restorations.
Dual 5MP cameras and 5 μm precision equip the UP1000 to deliver the high-definition, high-accuracy scans needed for implants, fixed restorations, and removable prosthetics. Consistently reliable results for demanding dental workflows.
*This device can not only be used for dental model scanning but also for jewelry scanning or other general purpose.
UP1000 dental impression scanner supports color texture scanning, capturing hand-drawn margin lines and the edges of base teeth with clarity. This significantly restores the model, enhancing design accuracy.

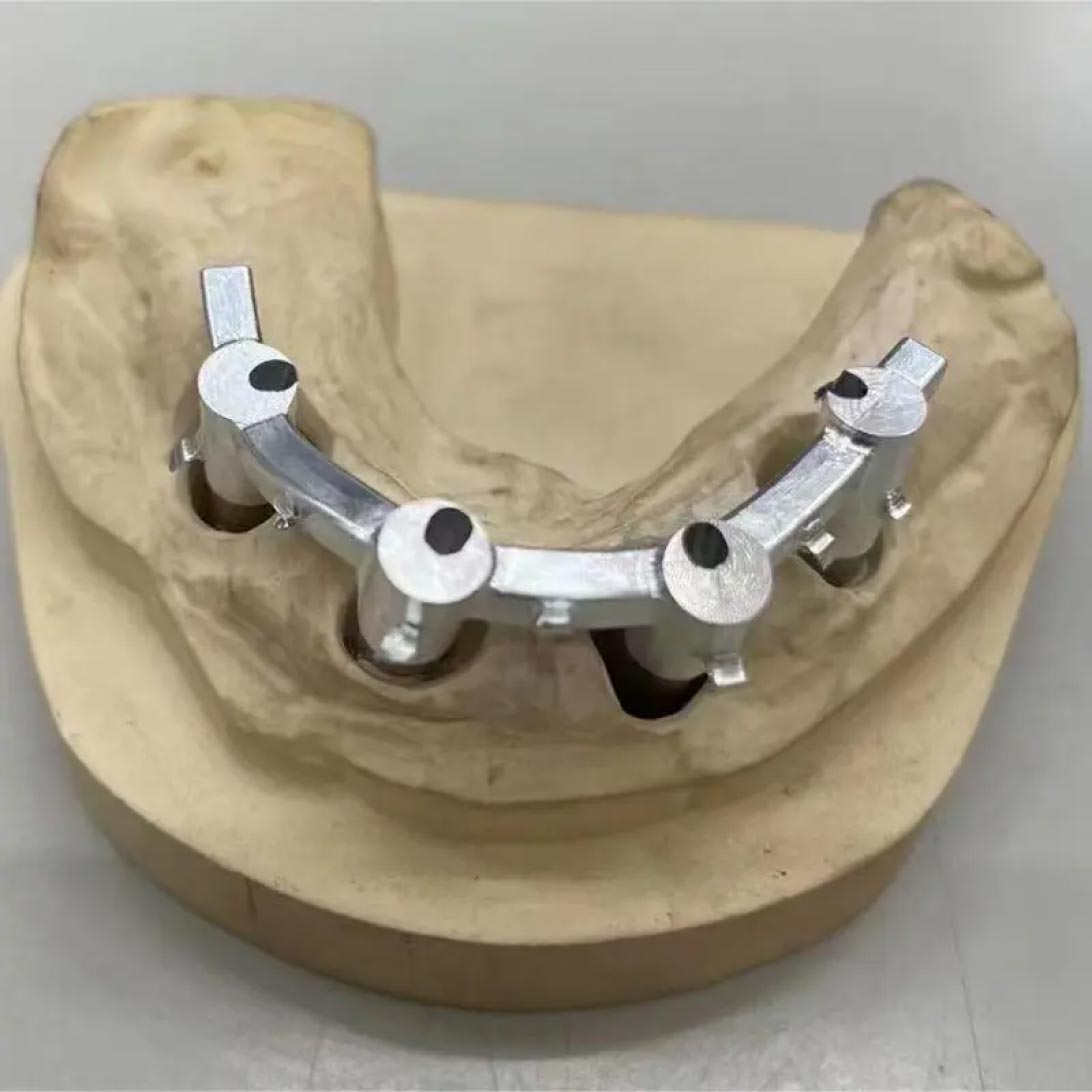

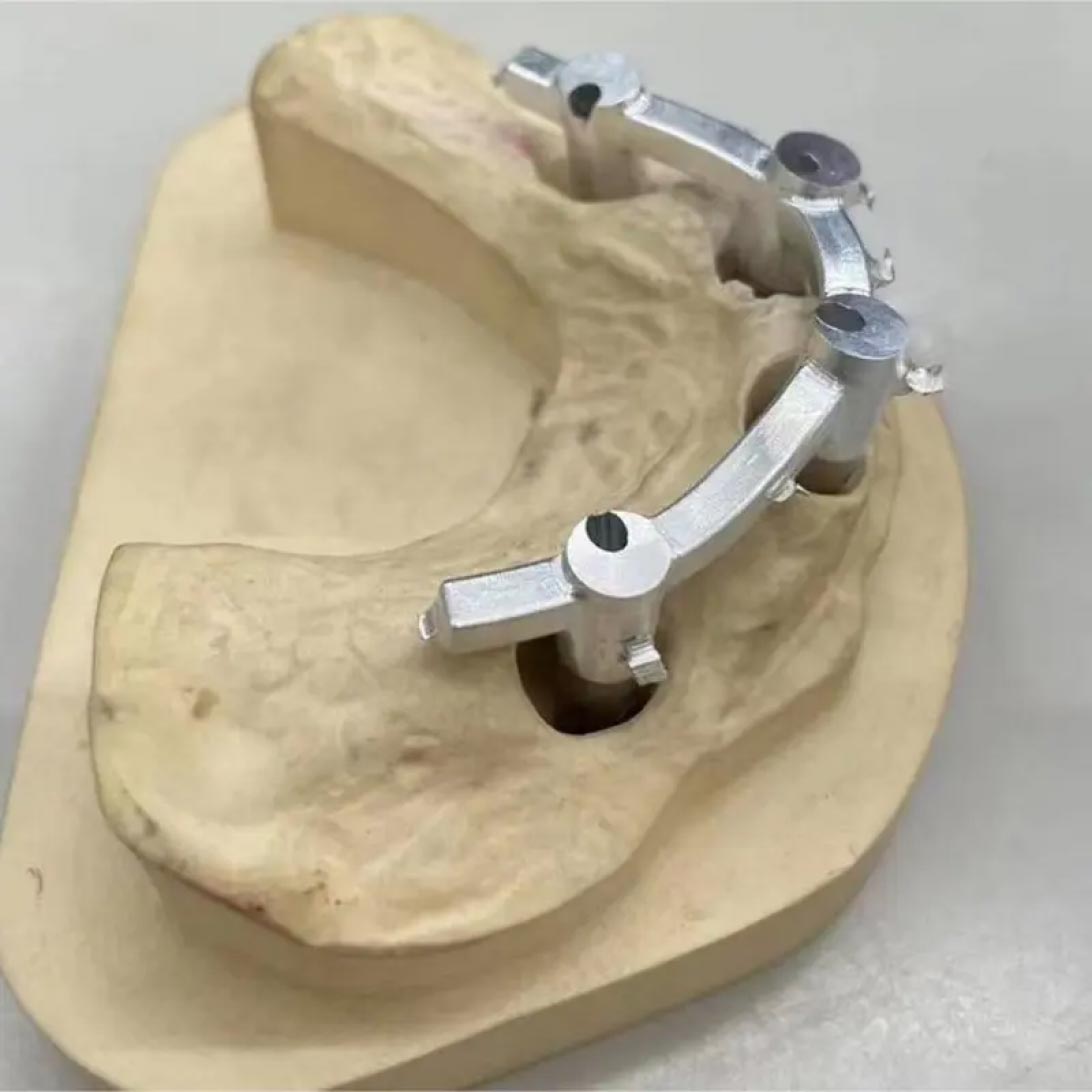

Capture multiple scan bodies in one go, enabling efficient scanning for implant restorations, crowns, bridges, and other intricate dental work.
Import and export STL, PLY, OBJ, files, enabling smooth workflows with leading CAD software like exocad, 3Shape, and DentalWings.
Intuitive interface with shortcut keys to quickly access common configurations, bypassing tedious settings for efficient workflows.
Supports color texture scanning, capturing clear markings such as hand-drawn brace lines and the edges of base teeth, accurately restoring models to improve design precision.
Freely navigate scanning steps with a single click, breaking free from traditional constraints for a seamless, convenient dental scanning experience.
| Model | UP1000 |
|---|---|
| Dimension | 520×295×347mm |
| Weight | 15kg |
| Camera | Dual 5MP |
| Accuracy | 5 μm |
| Projector | Custom blue light,supports multi-color scanning |
| Interface | USB 3.0 |
| Output format | STL, PLY, OBJ |
| Power supply | AC100-240V, 50/60Hz |
| Axis | 2-axis |
| Texture Mode | Point cloud coloring |
| Structure Mode | Open |
| Feature | Precision scanning |
| Scanning Method | Non-contact blue light scanning |
